REC Temovex Blue 2/4
Third generation of our Temovex units!
– Dual counterflow heat exchangers with about 90% efficiency *

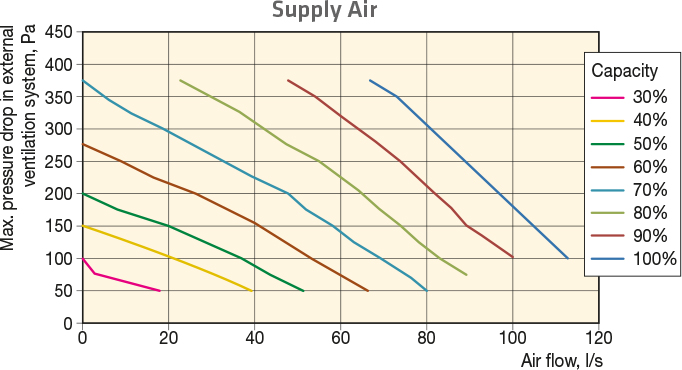

– SFP < 1,0 * (Example of a normal house 150 m2, 75 Pa in external channels)
– Special features for air heating (ECO2)
– Low noise
– Qualified for passive buildings
About REC Temovex Blue 2/4

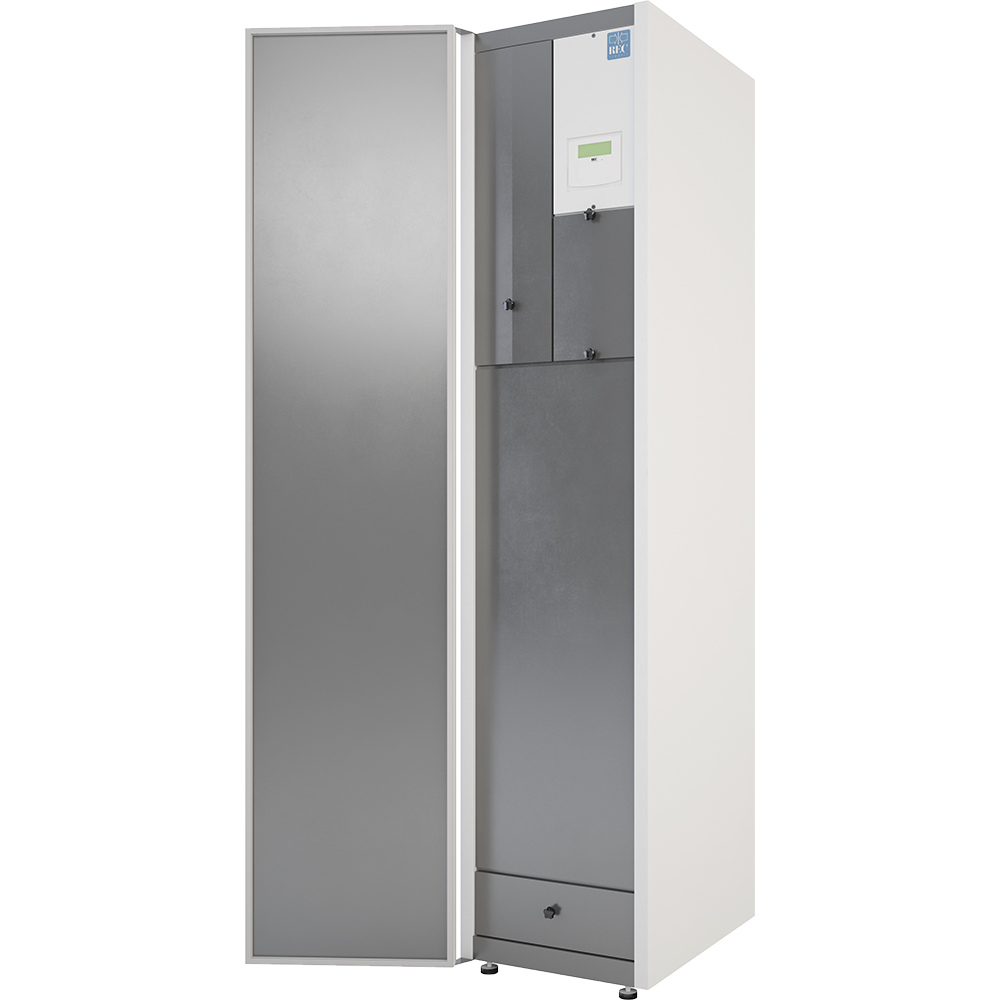

REC Temovex Blue is the third generation of REC’s Temovex units. Just as before the unit is designed as a white goods appliance and intended to be placed on the floor in a bathroom, laundry room, utility room or similar.
REC Temovex Blue 4 has dual counter-flow heat exchangers that are connected in parallel to provide high efficiency, not only at a specific point but over a wide flow range.
Certifications
Documents
| After-heater – Electrical | After-heater – HW Water temp. 55/45°C | |
| Rated output, unit | 1165 W | 265 W |
| Rated output, standard heater | 900 W, (1800 W option) | 1500 W (2800 W option) at 85 l/s |
| Rated output, fans | 169 + 96 W | 169 + 96 W |
| Voltage/Frequency input | 230 V, 50 Hz | 230 V, 50 Hz |
| Fuse | 10 A | 10 A |
| Filter, supply air / exhaust air | Bag ePM1 50%/Coarse 60% | Bag ePM1 50%/Coarse 60% |
| Weight | 97 kg | 97 kg |
| Water connection | – | DN12 |

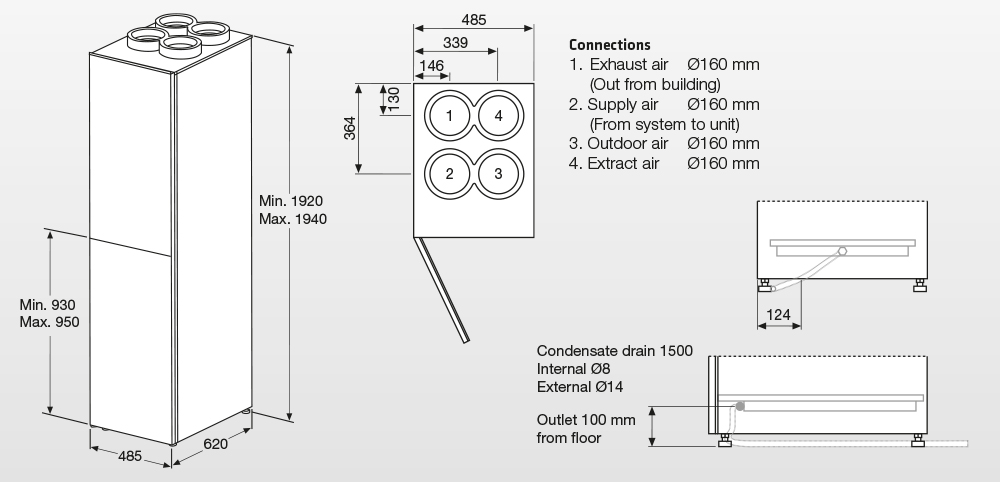

| Measurements (WxDxH) | 485x620x1940 mm*) | 485x620x1940 mm*) |
| Duct connections | 4 x 160 mm | 4 x 160 mm |
| Condensate drain | 8 mm | 8 mm |
| OPTIONS in addition to standard execution | Name |
| After-heater battery electrical (reinforced) 1,8 kW, built-in | EVB1,8 |
| After-heater water coil, built in (incl. 2 way valve and 0-10V actuator) | EVBV |
| After-heater water coil (reinforced), built-in (incl. 2 way valve and 0-10V actuator) | EVBV2 |
| Cooling coil, external (incl. 2 way valve and 0-10V actuator) | EKB |
| Cooling coil (reinforced), external (incl. 2 way valve and 0-10V actuator) | EKB2 |
| Condensation boiler, built-in | KAVK |
| Outdoor air damper with spring return | SPM160 |
| ECO2 Control system for air heating | ECO2 |
| Fireplace compensation incl. timer and switch | BRAS |
| Protection class IPX5 | IPX5 |
| Remote panel (with or without display) | Fjärr |
| Web connection (cost of subscription excluded) | REC Live |
| Top cover for lining | Topp |
| Fire function | BRAND |
